DuPont™ IntegraTec™ XP 77 IG High-Flow Chemical-Free PVDF UF Module with 0.03 μm Pore Size for Industrial Water Treatment
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | DuPont |
| Πιστοποίηση: | ISO 9001 |
| Αριθμό μοντέλου: | IntegraTec™ XP 77 IG |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 PC |
|---|---|
| Τιμή: | διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Τυπική συσκευασία εξαγωγής |
| Χρόνος παράδοσης: | 5-8 εργάσιμες ημέρες |
| Όροι πληρωμής: | T/T |
| Δυνατότητα προσφοράς: | 60000 μονάδες το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Ελάχιστος ρυθμός ροής M3/ώρα (gpm): | 1,02 m³/ώρα (4,5 gpm) | Ρυθμός ροής σχεδίασης M3/ώρα (gpm): | 2,0–3,1 m³/ώρα (9,0–13,5 gpm) |
|---|---|---|---|
| Βάρος μεταφοράς σε kg (λιβρά) **: | 99 κιλά (217 λίβρες) | Βάρος λειτουργίας Kg (lbs): | 74 (163) |
| Ανάκτηση: | 90-95% | Φόντα: | Υψηλής ροής, χωρίς χημικά |
| Αποκορύφωμα: | IONPURE CEDI LX-Z MODULE, μονάδα EDI Δεν απαιτούνται χημικές ουσίες, IP-LXM18Z-5 Μονάδα επεξεργασίας | ||
Περιγραφή προϊόντων

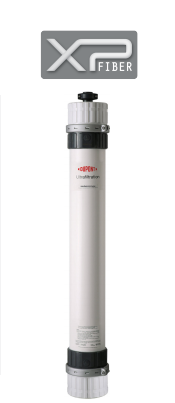

DuPont™ IntegraTec™ XP 77 IG PVDF Ultrafiltration Module
The DuPont™ IntegraTec™ XP 77 IG is an industrial-grade pressurized PVDF ultrafiltration (UF) membrane module designed for high-performance water treatment applications. Formerly known as DuPont™ IntegraFlux™ SFP-2880XP, it features advanced hydrophilic PVDF hollow fiber membrane technology, providing excellent fouling resistance, chlorine tolerance, and high filtration permeability.
With a 77 m² active membrane area and 0.03 μm pore size, the XP 77 IG delivers reliable removal of suspended solids, colloids, bacteria, and microorganisms. Its open platform design allows easy integration into customized UF skids and retrofit systems, making it ideal for industrial water treatment, wastewater reuse, municipal filtration, and RO pretreatment applications.
- Industrial utility water filtration
- Industrial wastewater reuse systems
- Municipal wastewater filtration
- RO pretreatment
- Process water purification
- Large-scale water treatment plants
| Parameter | Value |
|---|---|
| Product Model | IntegraTec™ XP 77 IG |
| Membrane Type | Hollow Fiber Ultrafiltration |
| Membrane Material | Hydrophilic PVDF |
| Filtration Mode | Out-In Pressurized |
| Operation Mode | Dead-End Filtration |
| Membrane Pore Size | 0.03 μm |
| Active Membrane Area | 77 m² (829 ft²) |
| Module Length | 2,360 mm |
| Module Diameter | 225 mm |
| Feed / Filtrate Port | DN50 |
| Shipping Weight | 73 kg (161 lbs) |
| Empty Weight | 61 kg (134 lbs) |
| Filled Weight | 100 kg (220 lbs) |
| Operating Temperature | 1-40°C |
| Operating pH Range | 2-11 |
| Cleaning pH Range | 2-12 |
| Typical TMP | 0.4-1.5 bar |
| Maximum Inlet Pressure | 6.25 bar |
| Maximum Filtration TMP | 2.1 bar |
The XP 77 IG uses high-performance PVDF hollow fiber membranes with superior fouling resistance, excellent chlorine tolerance, high permeability, and easy cleaning and recovery performance. This ensures stable operation and extended membrane lifetime.
With a 0.03 μm pore size, the module provides efficient removal of suspended particles, colloidal substances, bacteria, and microorganisms. It provides reliable protection for downstream RO systems.
The modular open-platform structure allows easy integration into customer-built UF skids, flexible system design, simple replacement of existing UF modules, and reduced installation complexity.
The robust membrane structure provides high air-scouring tolerance, reduced chemical cleaning frequency, lower operating costs, and reliable long-term operation.
Each DuPont™ IntegraTec™ XP 77 IG PVDF UF Module undergoes quality inspection before shipment. Technical support includes installation guidance, system integration assistance, and operation & maintenance recommendations.
FG Water Technologies provides stable supply capability, professional water treatment solutions, and export support for global customers.
