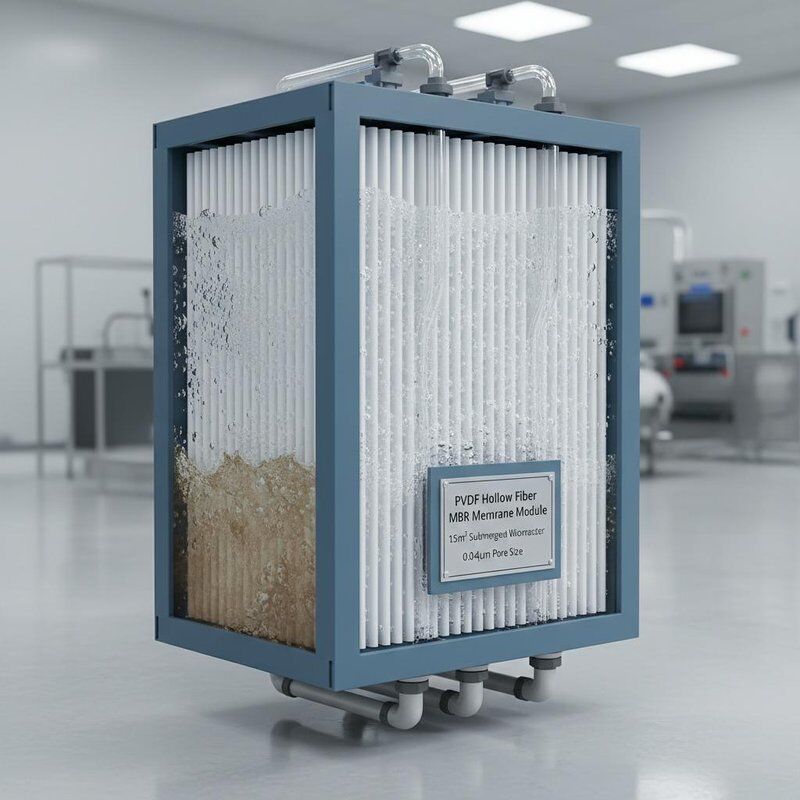

PVDF Hollow Fiber MBR Membrane Module with 0.04μm Pore Size and 15m² Effective Membrane Area for Submerged Wastewater Bioreactor
Λεπτομέρειες:
| Τόπος καταγωγής: | Γκουανγκντόνγκ, Κίνα |
| Μάρκα: | FILTERPRO |
| Πιστοποίηση: | ISO 9001:2015 |
| Αριθμό μοντέλου: | FP-MBR-15 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 Σετ |
|---|---|
| Τιμή: | USD 350-550 / Set |
| Συσκευασία λεπτομέρειες: | Ατομική σφραγισμένη συσκευασία με συντηρητικό, χαρτοκιβώτιο εξαγωγικής ποιότητας με απορρόφηση από α |
| Χρόνος παράδοσης: | 5-7 εργάσιμες ημέρες για το απόθεμα, 20-30 ημέρες για την παραγωγή |
| Όροι πληρωμής: | T/T, L/C, PayPal, Western Union |
| Δυνατότητα προσφοράς: | 2000 Σετ ΑΝΑ Μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Υλικό μεμβράνης: | Ενισχυμένο PVDF | Αποτελεσματική περιοχή μεμβράνης: | 15 m² |
|---|---|---|---|
| Μέγεθος πόρων: | 0,04 μm | Εσωτερική/εξωτερική διάμετρος ινών: | 0,7 mm / 1,3 mm |
| Σχεδιαστική ροή: | 10-25 L/(m²·h) | Εύρος MLSS: | 5000-12000 mg/L |
| Θερμοκρασία λειτουργίας: | 5-40 ° C | Εύρος Ph: | 2-12 |
| Ρυθμός αερισμού: | 60-90 Nm³/(m²·h) | ||
| Επισημαίνω: | PVDF Hollow Fiber MBR,Submerged Membrane Bioreactor,0.04 Micron Wastewater Filtration |
||
Περιγραφή προϊόντων
The FP-MBR-15 is an advanced MBR (Membrane Bioreactor) module featuring reinforced PVDF hollow fiber membranes with a precisely controlled 0.04μm pore size. This submerged membrane module combines biological treatment with membrane filtration in a single compact unit, delivering superior effluent quality suitable for direct reuse or safe discharge.
- Advanced MBR Technology: Integrates activated sludge biological treatment with membrane solid-liquid separation, eliminating the need for secondary clarifiers and tertiary filtration.
- Reinforced PVDF Membrane: Polyvinylidene fluoride (PVDF) hollow fibers with embedded reinforcement provide exceptional mechanical strength, hydrophilicity, and resistance to chemical cleaning agents including sodium hypochlorite and citric acid.
- 0.04μm Absolute Filtration: Ultra-fine pore size ensures complete retention of bacteria, viruses, and suspended solids, producing effluent with turbidity below 0.5 NTU and SDI below 3.
- 15m² Compact Design: High packing density delivers 15 square meters of effective membrane area in a space-saving module format compatible with standard MBR tank configurations.
- Anti-Fouling Surface: Hydrophilic membrane surface modification reduces organic and biofouling, extending the interval between chemical cleaning and lowering operational costs.
| Parameter | Value |
|---|---|
| Membrane Material | Reinforced PVDF |
| Effective Membrane Area | 15 m² |
| Pore Size | 0.04 μm |
| Fiber Inner / Outer Diameter | 0.7 mm / 1.3 mm |
| Design Flux | 10-25 L/(m²·h) |
| MLSS Range | 5,000-12,000 mg/L |
| Operating Temperature | 5-40°C |
| pH Range | 2-12 |
| Aeration Rate | 60-90 Nm³/(m²·h) |
| Module Dimensions | Customizable per tank design |
Ideal for municipal wastewater treatment and reuse, industrial wastewater treatment (food processing, textile, chemical, pharmaceutical), landfill leachate treatment, and decentralized sewage treatment for residential communities and resorts. Compliant with stringent discharge standards including China GB18918 Class 1A and EU Urban Wastewater Directive.
Comprehensive technical support including system design consultation, installation guidance, commissioning assistance, and troubleshooting. Spare membrane modules and replacement fibers available for long-term operation.
