Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | VEOLIA |
| Πιστοποίηση: | CE |
| Αριθμό μοντέλου: | MK-9 |
| Έγγραφο: | Veolia EDI catalog.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 υπολογιστή |
|---|---|
| Τιμή: | διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | τυπική συσκευασία εξαγωγής |
| Χρόνος παράδοσης: | 5-8 εργάσιμες ημέρες |
| Όροι πληρωμής: | , T/t |
| Δυνατότητα προσφοράς: | 60000 μονάδες το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Όνομα στοίβας MK-9: | MK-9 | Διαστάσεις στοίβας MK-9 (CM ως πλάτος x ύψος x βάθος): | 30 x 61 x 74 |
|---|---|---|---|
| MK-9 Stack Total Intersable Anions (ppm ως CACO3): | <13 | Αγκυροβολικότητα στοίβας MK-9 (μs/cm): | <22 |
| MK-9 Stack PH: | 4-11 | Θερμοκρασία (° C): | 4.4-40 |
| Σκληρότητα (ppm ως CACO3): | <1.0 | Διοξείδιο του πυριτίου (ppm ως SiO2): | <1.0 |
| Τυπική σχεδιασμένη παραγωγή νερού (M3 /HR): | 6.0-10.0 | Ανάκτηση: | Έως 97% |
| Δυναμικό: | 0-400 VDC | Τυπικές εφαρμογές νέας κατασκευής: | Ηλιακά φωτοβολταϊκά και πράσινο υδρογόνο |
| Επισημαίνω: | Veolia E-Cell MK-9 EDI module,high-flow EDI module,robust design EDI stack |
||
Περιγραφή προϊόντων

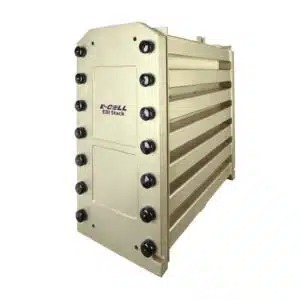

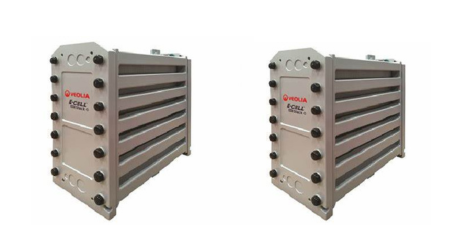

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
The Veolia E-Cell MK-9 Electrodeionization (EDI) Module is designed for high-flow, continuous production of ultra-pure water in industrial applications, capable of delivering flows up to 10 m³/h (44 GPM) with resistivity ≥16 MΩ·cm and silica removal to ≤5 ppb. It eliminates the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for power generation, semiconductors, pharmaceuticals, and microelectronics, the MK-9 operates at recovery rates up to 97% and supports hot-water sanitization (up to 85°C) for stringent hygiene requirements. Its robust construction ensures stability under varying feedwater conditions, with compliance to CE, RoHS, and ISO 9001/14001 standards. The module integrates seamlessly into reverse osmosis (RO) systems for polishing permeate, offering scalability and minimal maintenance
The Veolia E-Cell MK-9 Electrodeionization (EDI) Module is designed for high-flow, continuous production of ultra-pure water in industrial applications, capable of delivering flows up to 10 m³/h (44 GPM) with resistivity ≥16 MΩ·cm and silica removal to ≤5 ppb. It eliminates the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for power generation, semiconductors, pharmaceuticals, and microelectronics, the MK-9 operates at recovery rates up to 97% and supports hot-water sanitization (up to 85°C) for stringent hygiene requirements. Its robust construction ensures stability under varying feedwater conditions, with compliance to CE, RoHS, and ISO 9001/14001 standards. The module integrates seamlessly into reverse osmosis (RO) systems for polishing permeate, offering scalability and minimal maintenance
Product Specifications
| Attribute | Value |
|---|---|
| Stack Name | MK-9 |
| Dimensions (cm) | 30 x 61 x 74 (W x H x D) |
| Total exchangeable anions (ppm as CaCO3) | <13 |
| Conductivity (μS/cm) | <22 |
| pH Range | 4-11 |
| Temperature Range (°C) | 4.4-40 |
| Hardness (ppm as CaCO3) | <1.0 |
| Silica (ppm as SiO2) | <1.0 |
| Typical designed water production (m3/hr) | 6.0-10.0 |
| Recovery Rate | Up to 97% |
| Voltage | 0–400 VDC |
| Typical Applications | Solar Photovoltaics And Green Hydrogen |
Product Overview
The Veolia MK-9 EDI Stack delivers 35 GPM of ultrapure water for demanding industrial applications. E-Cell EDI technology, based on proven production practices, provides industry-leading product water quality, energy efficiency, and reliability.
Key Features & Benefits
- Optimized Flow Rate (8.0 m³/h): Designed for mid-to-large-scale industrial systems requiring reliable high-purity water production
- Veolia/Suez Advanced EDI Technology: Incorporates next-generation MK-9 membrane and spacer design for superior ion removal efficiency
- Zero Chemical Regeneration: Eliminates hazardous acid/caustic regeneration chemicals, reducing operational costs and environmental impact
- Enhanced Energy Efficiency: Optimized stack hydraulics minimize power consumption per liter of purified water
- Robust Design & Reliability: Engineered for 24/7 continuous operation with high resistance to scaling and fouling
- Smart Operation & Integration: Compatible with modern PLC/SCADA systems for real-time monitoring
Technical Parameters
| Parameter | Value |
|---|---|
| Brand | Veolia EDI |
| Inlet Pressure | 6.9 bar (100 psi) |
| Max Temperature | 40°C (104°F) |
| Pressure Drop | 2.4-3.4 bar (35-50 psi) |
| Flow Rate | 8.0m3/h |
| Shipping Weight | 165 kg (364 lbs) |
Key Advantages
- Continuously produces ultrapure water of mixed bed water quality
- No acid and base regeneration required
- Guaranteed leak-proof design
- Simplified system design with no brine injection or concentrated water circulation
Typical Applications
- Power generation (NOx, boiler feed water)
- Electronics manufacturing
- General industrial applications
- Pharmaceutical & Biotech (WFI pre-treatment)
- Microelectronics & Semiconductor Manufacturing
- Laboratory Ultra-Pure Water Systems
Why Choose Veolia MK-9 EDI?
As the direct successor to Suez's industry-leading E-Cell™ technology, the MK-9 stack leverages Veolia's global expertise in water treatment. It delivers unmatched operational efficiency, sustainability, and reliability for demanding 8.0 m³/h ultrapure water applications, backed by Veolia's worldwide service and support network.
