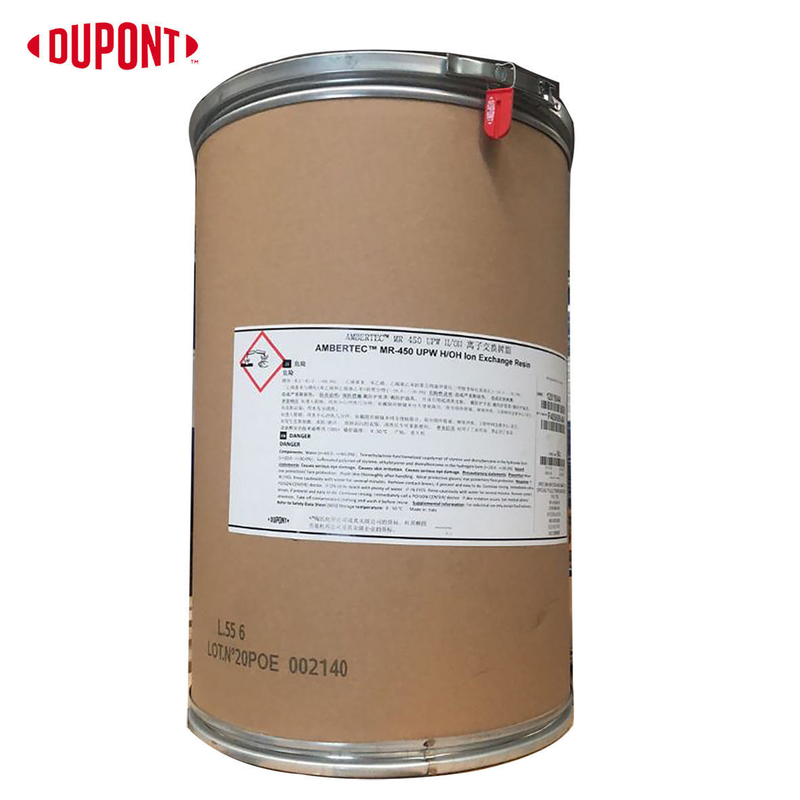

DuPont AmberTec MR-450 UPW Ion Exchange Resin 360 μm for Semiconductor
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | Dupont |
| Πιστοποίηση: | ISO9001 |
| Αριθμό μοντέλου: | Dupont ™ Ambertec ™ MR-450 |
| Έγγραφο: | IER-AmberTec-MR-450-UPW-H-O...en.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1PC |
|---|---|
| Τιμή: | διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | τυπική συσκευασία εξαγωγής |
| Χρόνος παράδοσης: | 5-8 εργάσιμες ημέρες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | 60000 μονάδες το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Συμπολυμερές ρητίνης: | Στυρενίου-διζινυλοβενζόλιο | Μήτρα ρητίνης κατιόντων: | Γέλη |
|---|---|---|---|
| Τύπος: | Ισχυρό κατιόν οξέος | Πρωτογενείς εφαρμογές: | Η βιομηχανία ημιαγωγών |
| Ιοντική μορφή ρητίνης κατιόντων όπως αποστέλλονται: | ≥ 18 MΩ · cm | Διάμετρος σωματιδίου ρητίνης κατιόντων: | 360 ± 50 μm |
| Ομοιομορφία συντελεστής: | ≤ 1,1 | ||
| Επισημαίνω: | DuPont AmberTec MR-450 UPW resin,semiconductor ion exchange resin,360 μm water treatment resin |
||
Περιγραφή προϊόντων
AmberTec™ MR-450 UPW H/OH is an ultrapure water-grade, non-separable, homogeneous mixed bed ion exchange resin designed for final polishing in the semiconductor industry. It is recommended for point-of-use or non-regenerable mixed beds in polishing loops to achieve sub-ppb levels of impurities such as soluble silica, boron, sodium, potassium, sulfate, chloride, zinc, iron, and aluminum. This resin typically operates for 2-3 years before replacement.
- Uniform particle size (360 μm cation, 590 μm anion) for efficient kinetics and high operating capacity
- Volumetrically optimized anion-to-cation ratio for maximum removal of boron and silica
- High ionic conversion rate (≥ 95.0%) and excellent rinse characteristics
- Non-regenerable polishing mixed beds in ultrapure water systems
| Property | Cation Resin | Anion Resin |
|---|---|---|
| Copolymer | Styrene-divinylbenzene | Styrene-divinylbenzene |
| Matrix | Gel | Gel |
| Type | Strong acid cation | Strong base anion, Type I |
| Functional Group | Sulfonic acid | Trimethylammonium |

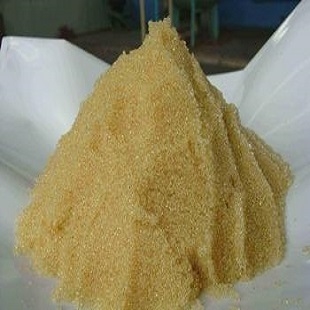

| Physical Form | Light amber translucent spherical beads | White to yellow translucent spherical beads |
| Property | Cation Resin | Anion Resin |
|---|---|---|
| Ionic Form as Shipped | H⁺ | OH⁻ |
| Total Exchange Capacity | ≥ 2.0 eq/L | ≥ 1.1 eq/L |
| Water Retention Capacity | 46 - 53% | 55 - 65% |
| Ionic Conversion (H⁺) | ≥ 99% | -- |
| Ionic Conversion (OH⁻) | -- | ≥ 95% |
| Ionic Conversion (CO₃ ²⁻) | -- | ≤ 0.1% |
| Parameter | Cation Resin | Anion Resin |
|---|---|---|
| Particle Diameter | 360 ± 50 μm | 590 ± 50 μm |
| Uniformity Coefficient | ≤ 1.1 | ≤ 1.1 |
| < 300 μm | ≤ 0.2% | ≤ 0.2% |
| Element | Cation Resin | Anion Resin |
|---|---|---|
| Na | ≤ 20 mg/kg | ≤ 25 mg/kg |
| Fe | ≤ 25 mg/kg | ≤ 25 mg/kg |
| Cu | ≤ 10 mg/kg | ≤ 15 mg/kg |
| Al | ≤ 15 mg/kg | ≤ 15 mg/kg |
| Parameter | Cation Resin | Anion Resin |
|---|---|---|
| Whole Uncracked Beads | ≥ 95% | ≥ 95% |
| Friability (Average) | ≥ 350 g/bead | ≥ 350 g/bead |
| > 200 g/bead | ≥ 95% | ≥ 95% |
- Shipping Weight: 704 g/L (for mixed bed)
- Temperature Range: 15 - 25°C (59 - 77°F)
- pH Range (Stable): 0 - 14
- Pressure Drop: Estimated pressure drop as a function of service flow rate and temperature is provided in Figure 1 (refer to original document).
- Rinse Performance: Typical conductivity and TOC rinse curves as a function of rinse volume (in bed volumes) are shown in Figure 2.
Users should review manufacturing processes and applications from health, safety, and environmental perspectives. Refer to the latest Safety Data Sheet (SDS) before use and ensure compliance with local regulations.
